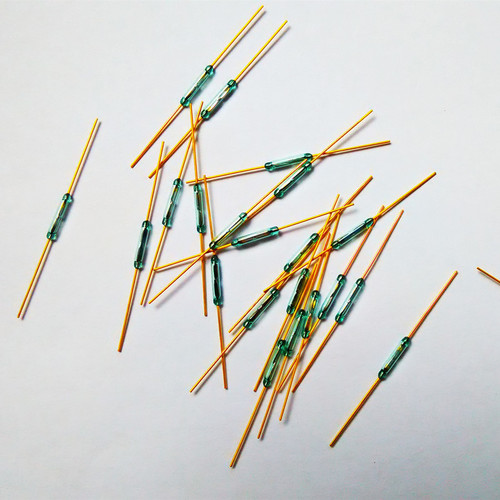

Reed Switch MKA10110

Reed Switch MKA10110
Reed Switch MKA10110
Product Code : MKA10110
Product Description

MKA10110

Contact Form

A

Max.Contact Rating

10W

Max.Switching Voltage

100VDC

Min.Breakdown Voltage

150VDC

Max.Switching Current

0.5A

Max.Carry Current

——

Max.Initial Contact Resistance

100mΩ

Min.Insulation Resistance

109Ω

Max.Operate time

0.5ms

Bounce time

——

Max.Release time

0.3ms

Min.Resonant Frequency

5000Hz

Max.Operate Frequency

400Hz

Pull in Value

08-30AT

Min.Drop out Value

4AT

Max.Contact Capacitance

0.5pF

Electrical Life(Resistive loads VDC)

24V-250mA-1X105
5V-10mA-5X106

Test Coil Number of turns Resistance

5000T 580Ω
